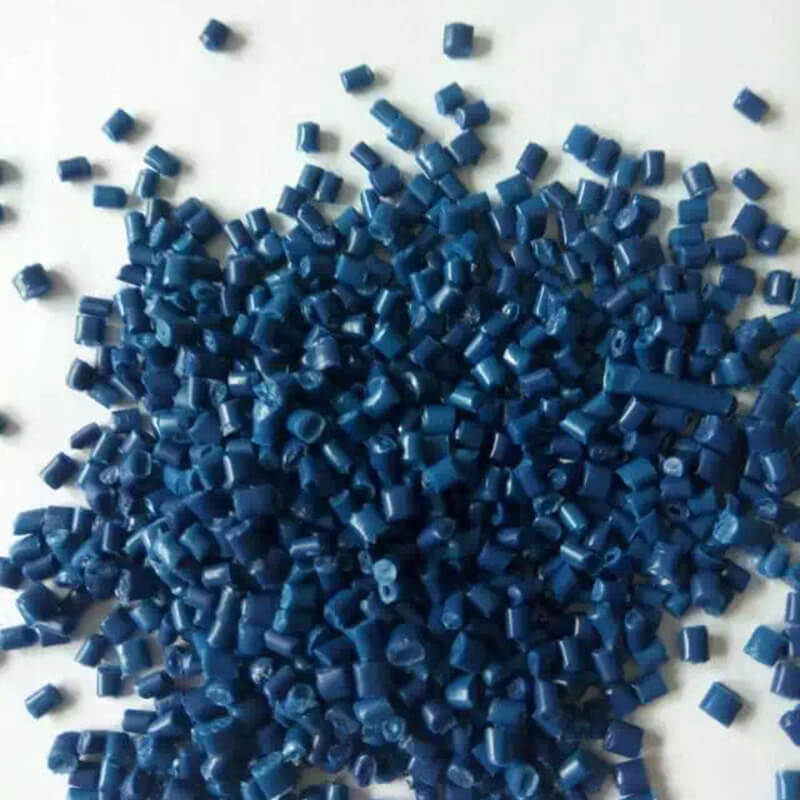

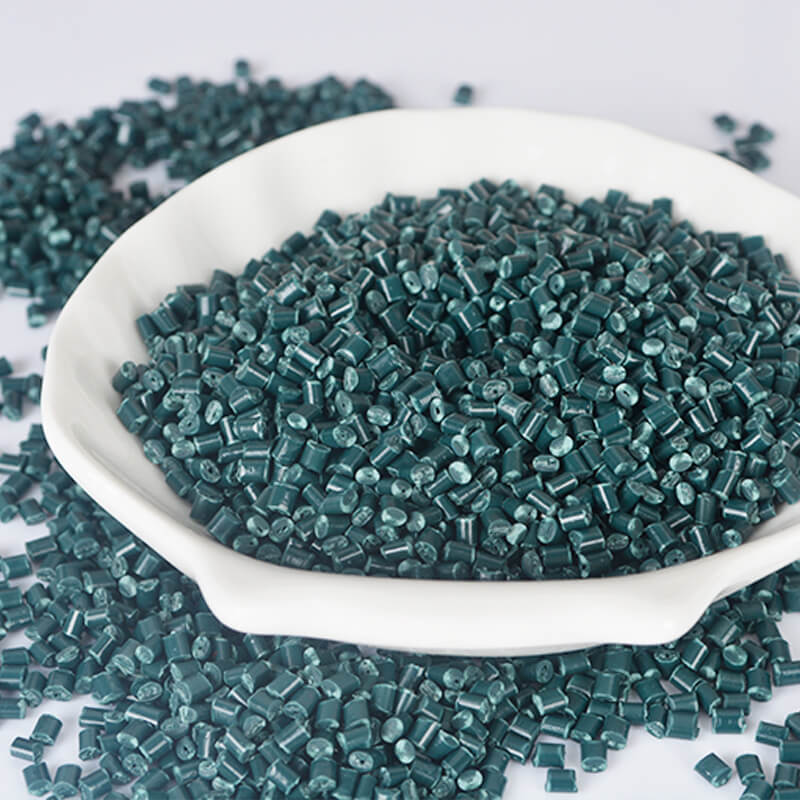

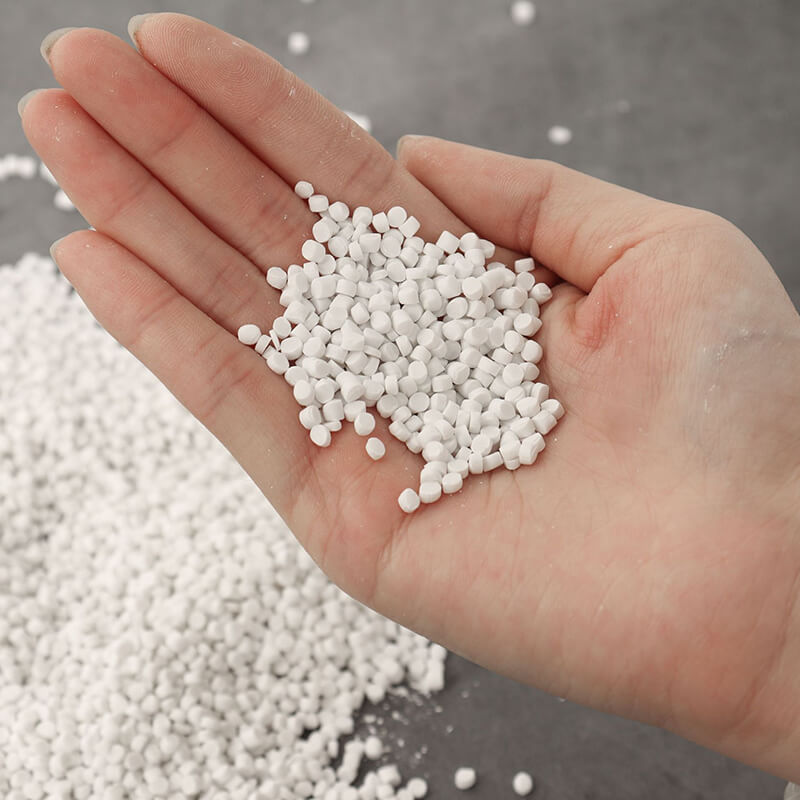

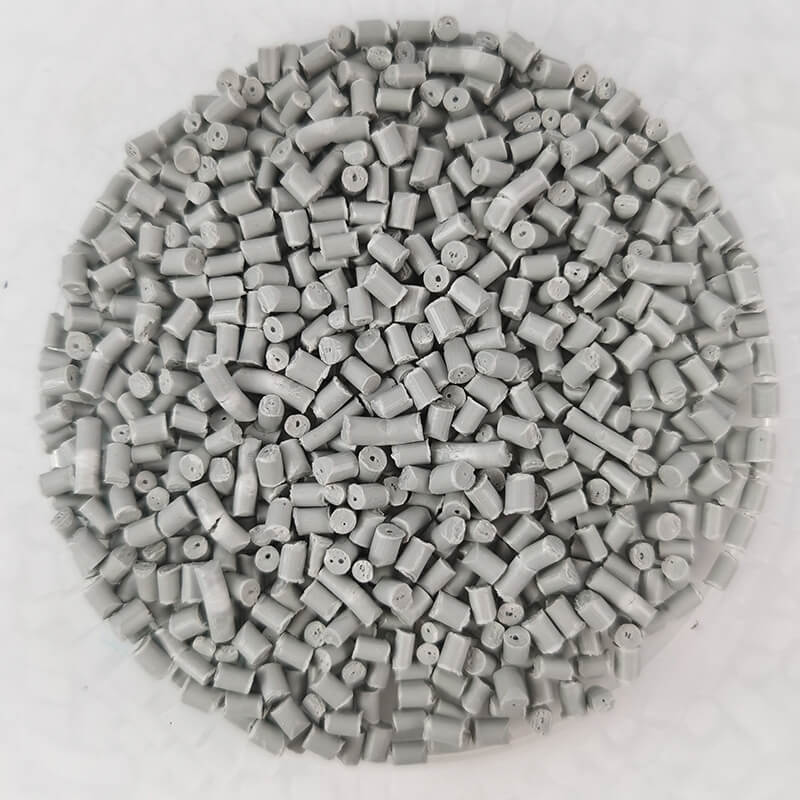

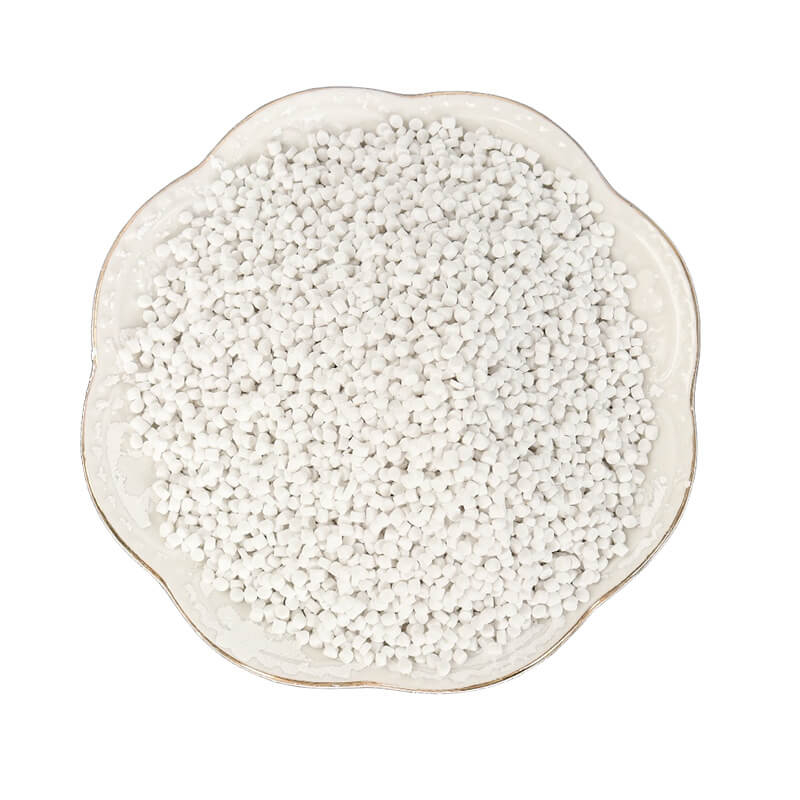

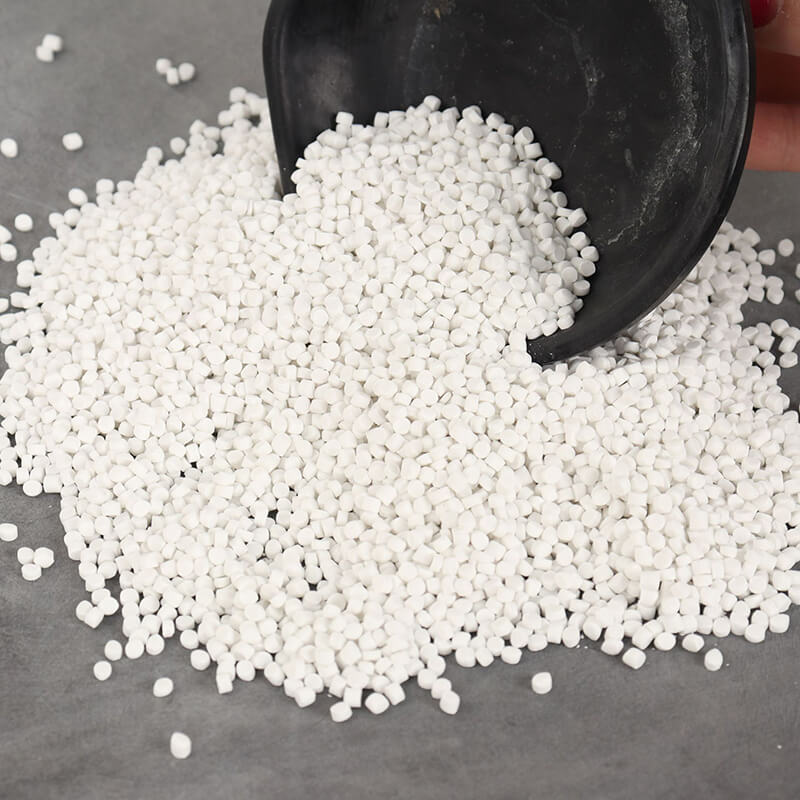

PP Calcium Carbonate Filled Resin Pellets - Cost-Effective·High Rigidity·Dimensional Stability Solution
I. Core Selling Points
✅ Cost Optimization: 30-60% CaCO₃ filling, reduces raw material cost by 15-30% vs. pure PP, no compromise on key performance
✅ Enhanced Rigidity: Flexural modulus ≥2500MPa (30% filling), 50% higher than pure PP, excellent load-bearing for structural parts
✅ Dimensional Stability: Shrinkage rate 0.8-1.2%, low warpage (tolerance ±0.03mm), adapts to large-size injection molding
✅ Processing Friendly: Compatible with existing PP production lines, melt flow rate 8-25g/10min, short molding cycle
✅ Eco & Compliance: Food-contact safe (FDA 21 CFR §177.1520), RoHS/REACH compliant, 100% recyclable, low VOC
✅ Customizable Filling: 20-60% CaCO₃ filling ratio, optional modification (toughness/UV resistance/flame retardancy)
II. Core Product Specifications (Professional Table with Data Support)
Performance Category | Test Item | Test Standard | Typical Value (20%/30%/50% CaCO₃ Filled) | Unit |
Basic Properties | Density | ASTM D792 | 0.98-1.05 / 1.08-1.15 / 1.20-1.30 | g/cm³ |
Water Absorption (24h/23℃) | ASTM D570 | ≤0.05 / ≤0.06 / ≤0.08 | % | |
Shrinkage Rate (flow direction) | ASTM D955 | 1.1-1.3 / 0.9-1.1 / 0.8-1.0 | % | |
Mechanical Properties | Tensile Strength (Yield) | ASTM D638 | 28-32 / 25-29 / 20-24 | MPa |
Flexural Strength | ASTM D790 | 45-55 / 55-65 / 70-80 | MPa | |
Flexural Modulus | ASTM D790 | 1800-2200 / 2500-3000 / 4000-4800 | MPa | |
Notched Izod Impact Strength (23℃) | ASTM D256 | 3.5-4.5 / 2.8-3.5 / 1.8-2.5 | kJ/m² | |
Thermal Properties | Heat Distortion Temp (0.45MPa) | ASTM D648 | 110-115 / 115-120 / 120-125 | ℃ |
Continuous Use Temperature | - | 80-90 / 85-95 / 90-100 | ℃ | |
Melting Point | DSC | 162-167 / 162-167 / 162-167 | ℃ | |
Processing Properties | Melt Flow Rate (230℃/2.16kg) | ASTM D1238 | 18-25 / 12-18 / 8-12 | g/10min |
Compliance Certifications | Food Contact | FDA 21 CFR §177.1520 | Compliant | - |
Environmental | RoHS 2.0/REACH 197 SVHC | Compliant | - | |
Quality System | ISO 9001/ISO 14001 | Compliant | - |
III. Target Application Scenarios (Industry + Pain Points + Solutions)
1. Automotive Industry → Cost-Effective + Rigidity
• Applicable Products: Interior trim panels, door handles, dashboard supports, wheel covers
• Core Value: 20-30% cost reduction vs. pure PP, high flexural modulus for structural stability, low VOC meets automotive standards
2. Home Appliance Industry → Dimensional Stability + Durability
• Applicable Products: Washing machine bases, air conditioner housings, refrigerator back panels, TV stands
• Core Value: Low warpage for large-size parts, scratch-resistant (CaCO₃ enhances surface hardness), cost-saving for mass production
3. Packaging & Logistics → Load-Bearing + Economy
• Applicable Products: Turnover boxes, hollow boards, packaging pallets, bottle caps
• Core Value: High compressive strength (supports 50-100kg load), 15-25% material cost reduction, moisture-proof
4. Construction & Building Materials → Weather Resistance + Rigidity
• Applicable Products: PVC pipe fittings, floor 革 underlays, wall panels, decorative profiles
• Core Value: UV-resistant modification available, high flexural modulus (≥4000MPa for 50% filling), chemical resistance to building materials
5. Daily Necessities → Cost-Effective + Practicality
• Applicable Products: Storage boxes, chair seats, plastic stools, kitchen utensil holders
• Core Value: FDA-compliant for food contact accessories, impact resistance for daily use, customizable colors
IV. Quality Assurance System (Build Procurement Trust)
1. Production Process
• Adopts high-efficiency dispersion & twin-screw extrusion technology, uniform CaCO₃ particle distribution (particle size 1-5μm, agglomeration rate ≤2%)
• Fully automated production lines with real-time filling ratio/temperature monitoring, raw material purity ≥99.8% (PP resin + food-grade CaCO₃)
• Batch Stability: Performance fluctuation ≤±4% per batch, monthly capacity 1,000 tons
2. Testing Standards
• Full-Process Inspection: Raw material screening (PP resin/CaCO₃ purity) → Dispersion uniformity test → Mechanical/thermal/compliance testing → Outbound QA
• Testing Equipment: Particle size analyzer, universal testing machine, thermal distortion tester, VOC detector, colorimeter
3. Certification Qualifications
• Basic: ISO 9001, RoHS 2.0, REACH
• Special: FDA 21 CFR §177.1520 (food contact), LFGB (EU food contact), SGS environmental testing
V. Cooperation Support (Lower Procurement Threshold)
✅ Sample Support: Free 5kgs standard samples (20%/30%/50% filling), custom filling ratio samples (5-day delivery)
✅ Customization Service: CaCO₃ filling ratio adjustment (20-60%), toughened/UV-stabilized/flame-retardant modification, color matching (Pantone/RAL)
✅ Technical Support: Molding parameter optimization (processing temp 180-220℃), mold design advice, cost-saving program design
✅ Logistics Guarantee: Global shipping (EXW/FOB/CIF), flexible packaging (25kg bags/1000kg/pallet), moisture-proof vacuum packaging option
✅ After-Sales Guarantee: 1-year quality warranty, free replacement for non-compliant batches, 24h technical troubleshooting
